Wind Analysis Toolkit

SCI has produced three software components which form the ‘Wind Analysis Toolkit’. The software may be licensed for use in software applications to analyse peak velocity pressure and loads on walls and roofs and displayed in a 3D interactive graphic.

Key Features:

  • Support for BS 6399 and BS EN 1991-1-4 & UK NA
  • UK and Ireland Coverage
  • Fully customisable with seamless integration with your application
  • Fast background calculation, no ‘interface hijacking’
  • Full technical support for software developers
  • Simple licence arrangements
  • Developed, hosted and supported by SCI

Wind360



WindPlus



ZoneViewer

  • Location by postcode or grid reference

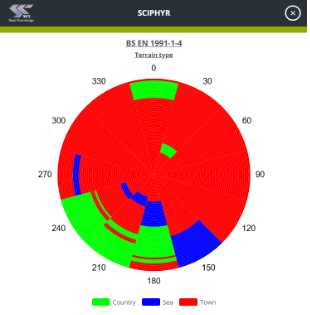

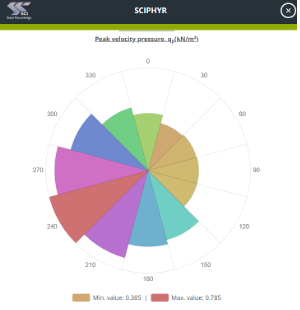

  • Site analysis in 12 directions
  • Satellite image to assess local shielding with annual update of terrain
  • Web service for seamless integration

  • Seamless integration with Wind360
  • Design loads on walls and roofs in four building directions
  • Support of multiple roof types, including curved and hipped roofs
  • Web service for seamless integration

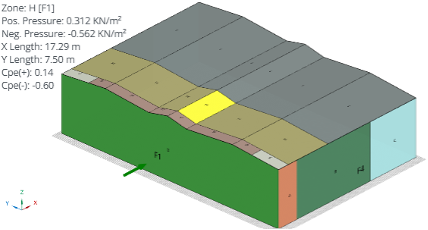

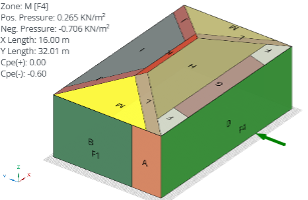

  • 3D, scaled interactive graphic component showing building, zones and loads for use in applications
  • Seamless integration with WindPlus
  • .Net component for Windows applications
Wind360   WindPlus   ZoneViewer

To demonstrate the utilisation of Wind360 and WindPlus as a web service, a number of software demos have been created:

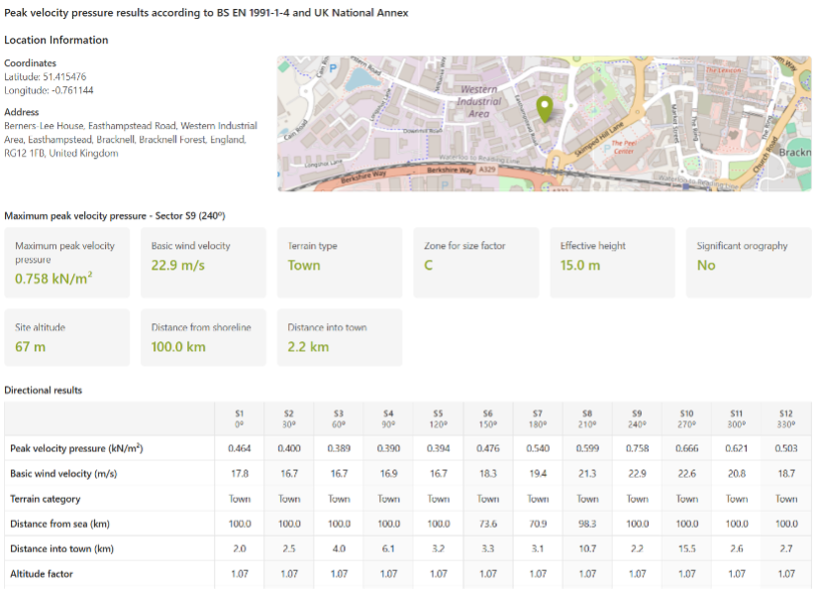

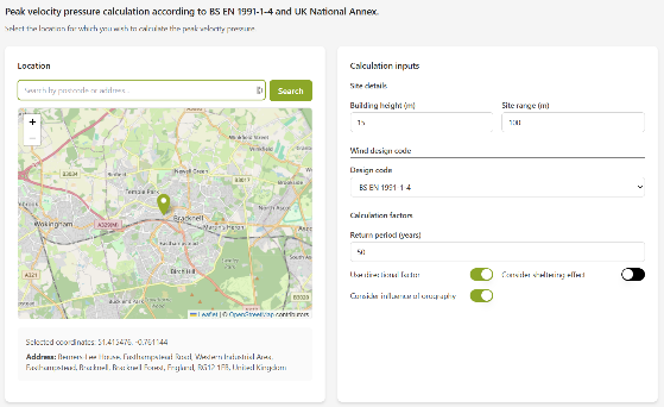

  • A web application available here.
  • A Wind360 desktop Windows demo which can be downloaded from here.
  • A WindPlus desktop Windows demo which can be downloaded from here
  • A Wind360 Excel spreadsheet which can be downloaded from here.

Please note that the Public API key (00000000-0000-0000-0000-000000000000) used in the above demonstrations only works with grid references starting with 'SU'. If you want to try the service with other locations, a personal API key can be obtained by contacting SCI.

Licence information – SCI Wind Analysis Toolkit

For further information please email wind@steel-sci.com or call +44 (0)1344 636525.
